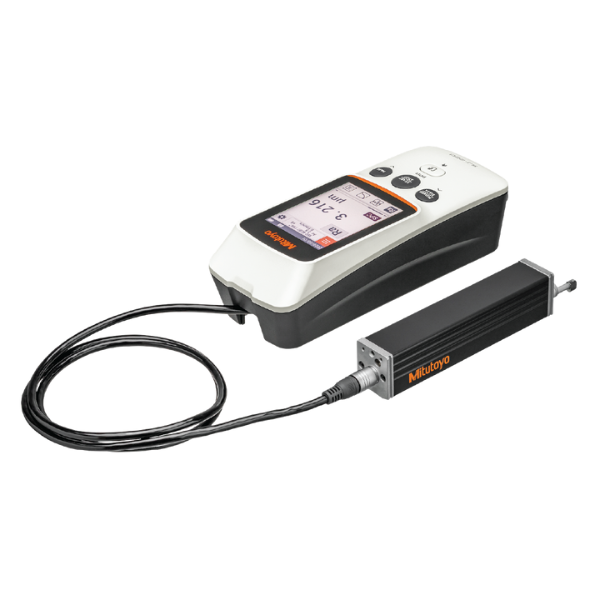

Mitutoyo Surftest SJ-220
Precision surface roughness testing, wherever you need it.
The Mitutoyo Surftest SJ-220 represents the next generation in portable surface roughness testing—combining laboratory-grade accuracy, versatile functionality, and rugged mobility to meet the demands of today’s dynamic manufacturing and inspection environments. Whether you’re conducting in-line quality checks on the shop floor or validating surface finish in the field, the SJ-220 delivers high-performance results in a compact and easy-to-use format.
Key Performance Features
-
Advanced Measurement Capabilities:
The SJ-220 is capable of measuring up to 39 surface roughness parameters, including commonly used metrics such as Ra, Rq, Rz, and Rt, making it suitable for a wide range of surface types and tolerance specifications. -
Standards Compliance:
Fully compliant with ISO 1997, JIS 2001/1994, ANSI, and VDA surface texture standards, the SJ-220 supports global manufacturing protocols and ensures traceable, standards-based reporting. -
Intuitive Dual Interface:
Equipped with a 2.8-inch full-colour touchscreen and physical control buttons, the device enables flexible operation in virtually any environment, including situations where gloves are required or ambient conditions are less than ideal. -
Drive Unit Options for Application Flexibility:
Choose the drive unit that fits your workflow:-
Standard (SJ-220) – for general-purpose measurements across flat and gently contoured surfaces.
-
Retractable (R-Drive) – retracts the stylus post-measurement to prevent damage in constrained areas.
-
Transverse (S-Drive) – ideal for measuring surface profiles on narrow, recessed, or lateral orientations.
-
Connectivity & Data Management
-
USB-C Interface:
Recharge the device and transfer data seamlessly with a modern USB-C port, simplifying integration into contemporary workstations and digital documentation workflows. -
Wireless Output via U-WAVE (optional):
The SJ-220 supports Bluetooth data transmission through Mitutoyo’s U-WAVE wireless communication system, enabling real-time data logging and streamlined reporting without cables. -
Software Integration:
Compatible with Mitutoyo’s dedicated analysis software, the SJ-220 allows users to perform in-depth analysis, generate detailed PDF reports, and maintain digital records for quality control and audits. -
Multilingual Support:
A multilingual interface ensures ease of use across diverse teams, supporting operators in global manufacturing environments.
Built for the Real World
-
Portable and Durable:
Compact enough to fit in your hand yet engineered for shop-floor durability, the SJ-220 is built for reliable performance in demanding industrial conditions. -
Long-Lasting Power:
Its rechargeable battery delivers extended operation time, making it ideal for all-day use in the field or on the production line. -
Data Storage & Reporting:
Internal memory enables local data storage, and results can be printed or exported for full traceability and documentation.
Applications Across Industries
The Mitutoyo SJ-220 is ideal for use in:
-
Automotive and aerospace manufacturing – where tight tolerances and international standards matter
-
Precision machining and metalworking – ensuring surface finishes meet functional and aesthetic requirements
-
Medical device and electronics production – for quality control in small parts and sensitive surfaces
-
Research and development labs – offering portable, repeatable data collection for experimental setups
-
Maintenance and repair operations (MRO) – where quick verification of surface conditions is needed onsite
Why Choose the SJ-220?
The SJ-220 is more than just a portable roughness tester—it’s a complete solution for manufacturers, engineers, and inspectors who need to measure surface texture quickly, accurately, and to international standards. With its advanced features, flexible operation, and seamless connectivity, it brings precision measurement to wherever work is being done.
