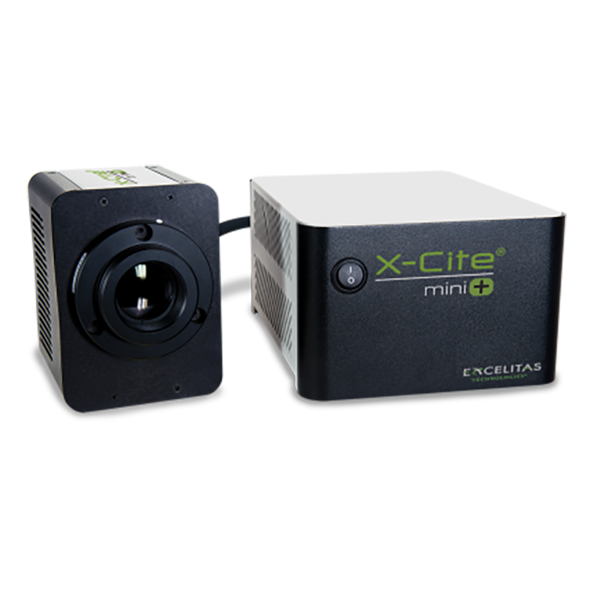

The X-Cite mini+ comes with built-in controls and includes intuitive fingertip control with speedDIAL, hands-free operation with a foot pedal, and USB and TTL inputs for automated applications. X-Cite mini+ has a 20,000 hour warranty; no lamps to change, no mercury disposal fees and no light guides to replace. With energy-efficient LEDs and the advantage of instant ON/OFF to minimize power consumption, the X-Cite mini+ fits into any research lab’s “go-green” strategy.
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Includes | X-Cite mini+ Head, miniCube, speedDIAL, microscope flange, accessory kit |
| Wavelength Range | Model: XTMS: 360-700 nm |
| External Power Supply | Universal input 100-240 VAC, 50/60 Hz |
| Current | 2.4-1.2 A |
| LED ON/OFF Response Times | 100µs TTL / 1ms USB |
| Control Options | ON/OFF – TTL compatible, speedDIAL, RS-232 commands (SDK available), USB |
| I/O Connections | BNC input, USB (B-type), 3.5 mm stereo plug |
| Dimensions – HEAD | 100 mm x 135 mm x 110 mm (W x H x D) |
| Dimensions – CONTROLLER | 180 mm x 110 mm x 230 mm (W x H x D) |
| Dimensions – speedDIAL | 80 mm x 59 mm x 112 mm (W x H x D) |
| Weight | 3.4 kg (7.5 lb) |
| Certifications | RoHS, CE |
| Warranty | LEDs – 20,000 hours, All other X-Cite mini+ components – 1 year, parts and labor |
