MORE POWER. MORE WAVELENGTHS. MORE X-CITE.
The X-Cite NOVEM has it all. With high power output, a wide spectral range, convenient design features, and whisper-quiet operation, this nine-channel LED illuminator does everything but compromise.
With nine individually controllable channels, the X-Cite NOVEM is bright enough to rival arc lamps in microscopy applications. Reduced sample exposure and scanning times will translate to improved image quality and productivity in most applications. Each channel can be set to its own intensity, in 1% increments, providing full control and flexibility together with exceptional uniformity and stability.

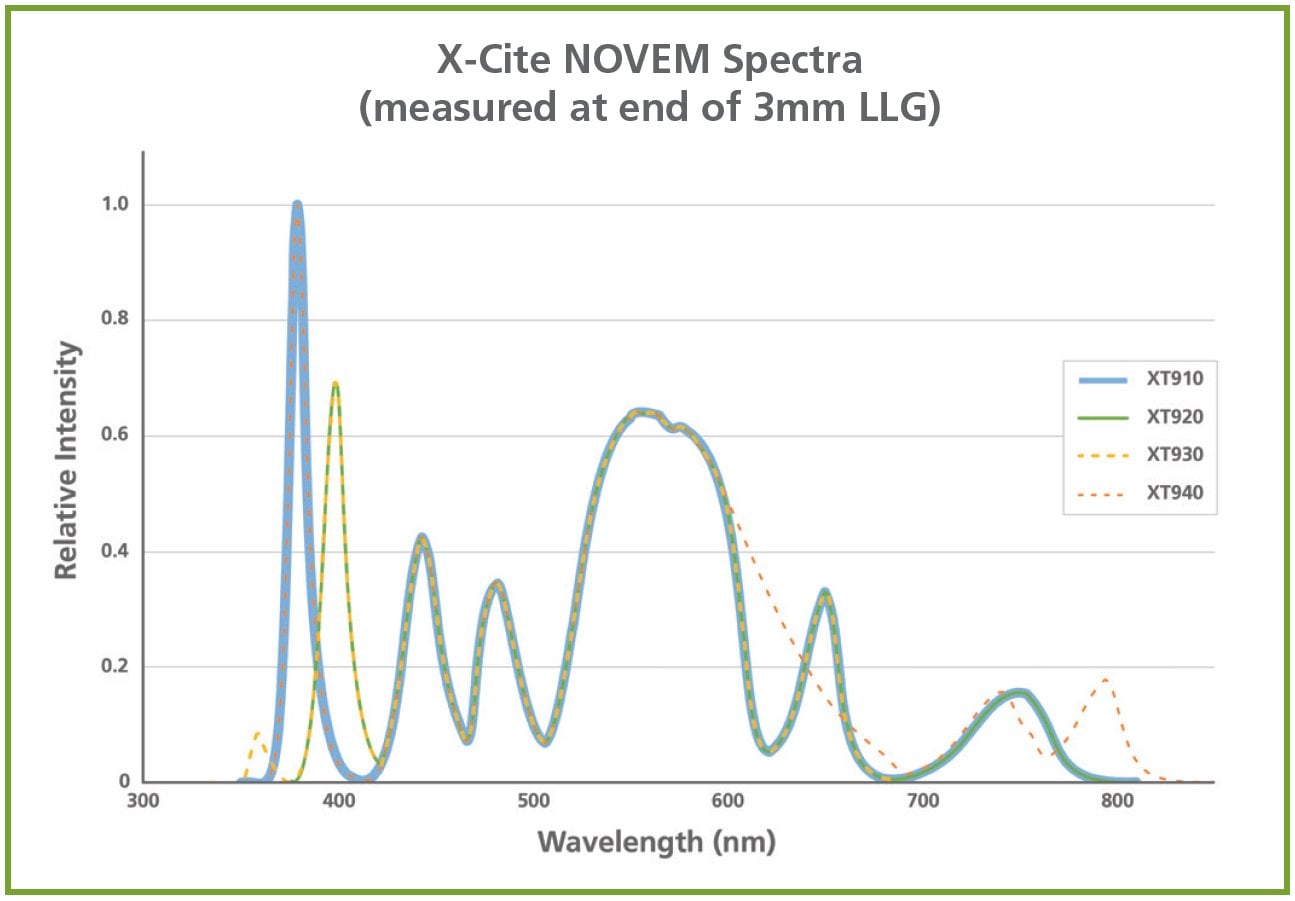

Unique to the X-Cite NOVEM, its spectral coverage extends from UV to IR. Researchers can image Fura-2 using the 340/385nm LEDs for ratiometric calcium imaging, powerful excitation for Cy7, and for the first time, IR800 and other emerging far-red fluorophores.
GET TO KNOW SAM AND ELLA! If you have not met Sam and Ella, the X-Cite microbes, watch the video episodes below to catch up on their adventures.
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Wavelength Ranges | X-Cite NOVEM-S, XT910: 360-770nm |
| Input Power Supply | Universal input 100-240VAC, 50/60Hz |
| Current | 4.5A max/100V, 1.9A max/240V |
| Response Times | LED ON/OFF: 100μs TTL / 1ms USB |
| Control | Options speedDIAL |
| I/O Connections | Mini DIN plug, 9pos (speedDIAL) |
| Dimensions (WxHxD) | 205mm x 265mm x 270mm (8.1” x 10.8” x 10.6”) |
| I/O Connections | BNC input USB (B-type) 3.5 mm stereo plug |
| Weight | 9kg (19.8lbs) |
| Shipping Dimensions (WxHxD) | 440mm x 400mm x 555mm (17.3” x 15.7” x 21.8”) |
| Shipping Weight | 11.8kg (26lbs) |
| Certifications | CE, RoHS, KC |
| Warranty | LEDs – 25,000 hours or 3 years |
| Patents | X-Cite NOVEM incorporates technology protected by patent US#9,239,133 |
