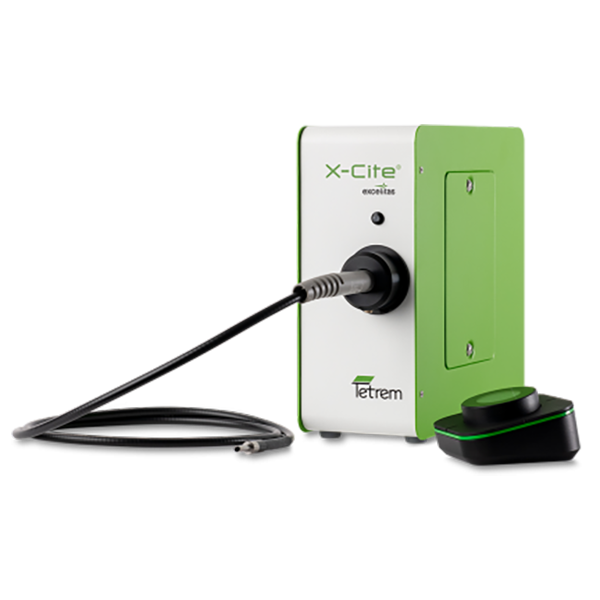

The X-Cite TETREM is designed to cover the four key spectral bands required to excite the most popular dyes used in fluorescence microscopy – DAPI, FITC, mCherry/TRITC and Cy5. There are two different UV LED wavelengths available – 365 nm and 385 nm models – to accommodate your DAPI excitation filter preference.
X-Cite TETREM offers the flexibility to operate its four LEDs, either individually or simultaneously, making it well-suited for use with both multi-band and regular filter cubes. Individual LED control will minimize bleed-through with multiband filter cubes and can provide UV-free illumination for reflected light applications. Intensity levels for each channel can be precisely adjusted to optimize excitation of fluorophores or create your perfect white color balance.
The X-Cite smartDIAL controller features large tactile buttons, illuminated channel numbers and an OLED display in the central dial to communicate wavelength/intensity information for all four channels simultaneously.
With a focus on the key fluorophores and the addition of individual LED control, X-Cite TETREM is a versatile illuminator. It is a smart solution for routine applications and an ideal way to upgrade a microscope.
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| MODEL: XT640S | MODEL: XT640L | |
| Wavelength Range | 360-660 nm | 380-660 nm |
| LED Peaks (nm) | 365, 475, 555, 635 | 385, 475, 555, 635 |
| External Power Supply | Universal input 100-240 VAC, 50/60 Hz 1.85A max/115V, 1.0A max/230V |
|
| Power Input to X-Cite Unit | 24VDC, 4.0A | |
| LED ON/OFF Response Times | 100μs TTL / 1ms USB | |
| Control Options | smartDIAL ON/OFF – TTL compatible Intensity – Analog RS-232 commands (SDK available), USB |
|
| I/O Connections | Mini DIN plug, 9pos (smartDIAL) USB (B-type) DB25 x 8 BNC (4 x TTL, 4 x Analog) |
|
| Dimensions (W x H x D) | 95 mm x 230 mm x 212 mm (3.7″ x 9.1″ x 8.4″) | |
| Weight | 3 kg (6.6 lb) | |
| Shipping Dimensions | 400 mm x 380 mm x 330 mm (16″ x 15″ x 13″) | |
| Shipping Weight | 5.5 kg (12 lb) | |
| Certifications | CE, RoHS, UKCA, KC | |
| Warranty | LEDs – 25,000 hours or 3 years All other X-Cite TETREM components – 1 year, parts and labor (excluding LLG) |
|
