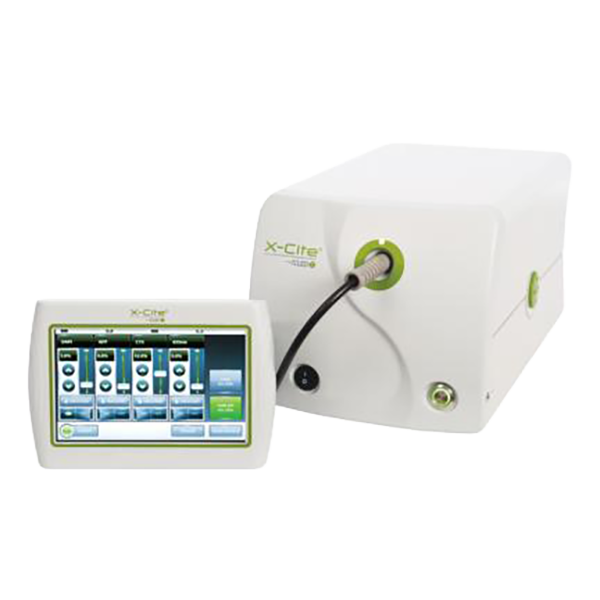

With unprecedented wavelength switching speeds to capture fast cell dynamics and advanced triggering options, the X-Cite XLED1 represents the industry’s next generation of fluorescence LED illumination.
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Wavelengths | Wavelengths and configurator available |
| Dimensions | 8.5” (W) x 8” (H) x 15” (D) (22 cm x 20 cm x 39 cm) |
| Weight | ~7.3 kg, ~16 lbs (full system) |
| Supply | Universal input of 100-240 Volts AC, 50-60 Hz. Fused at 6.3 A |
| Connectivity | USB type-B female |
| Triggering | Internal/External User-defined per channel |
| Sync Out | Mapped echo of LED cycles on separate output pins |
| Sync Out Phase Control | Individual control of sync phase advance/retard (half of max cycle duration) |
| Channel Switching Speeds | USB < 1 ms; Internal/External TTL Triggering down to10μs |
| Minimum Duty Cycle | 10 µs |
| Screen | Medical/Industrial grade 7” touch screen; 16:9 aspect ratio and LED backlight with adjustable intensity |
| Resolution | 800 x 480 pixels |
| Display Viewing Area | 6” (W) x 3.5” (H) (15 cm x 9 cm) |
| External Dimensions | 8” (W) x 2.5” (H) x 5.5” (D) (20 cm x 7 cm x 14 cm) |
| Program | Excelitas Technologies proprietary graphical user interface |
| Connectivity | ~2.5 m connectorized power and data combo cable |
| Power | <10 watts |
| Certifications | CE Marked, Certified to IEC, Canadian and US standards, RoHS compliant |
| Warranty | X-Cite XLED1 System, XLED1 touch screen controller and XLED1 LED drivers: 12 months from shipping. LED modules: 20,000 hours or 3 years |
