The 3216P1 controller provides programmable temperature control using up to 8 segments. Each segment comprising of a ramp followed by a dwell. Dwells may be set to zero time.
The 3216P5 controller has all of the functionality of the 3216P1 with the additional capability of being able to store up to 5 programs.
The 3216CC controller provides PID control for a single ramp to set point as well as a 99 hour process timer with 3 timer functions.
Standard features
- Multiple line numeric and alphamumeric display
- Navigation via 4 push button controls
- Simultaneous display of set-point and actual temperatures
- High and low temperature alarms
- The controller is a panel mounted device with a clear LED display
Options (specify these at time of order)
- Optional over-temperature protection through addition of a secondary controller
- Optional communications via RS232 or RS485

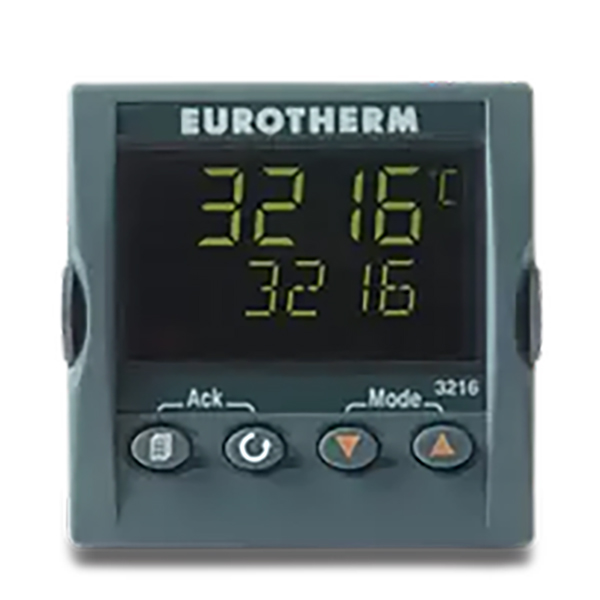

3216 Standard & Programmable Controller
Technical Specifications
3216 P1 Programmable Controller
| Control technology | PID |
| Basic functions | Each program accepts up to 8 ‘paired’ segments comprising 1 ramp and 1 dwell |
| Additional functions | A single program may be stored |
| Control | 4 navigation buttons |
| Alarms | High-low deviation, sensor break, event or element failure |
| Communications | Optional RS233 or RS485 |
| Dimensions H x W (mm) | 48 x 48 (1/16 DIN) |
| Configuration | Panel mounted |
3216 P5 Programmable Controller
| Control technology | PID |
| Basic functions | Each program accepts up to 8 ‘paired’ segments comprising 1 ramp and 1 dwell |
| Additional functions | Up to 5 programs may be stored |
| Control | 4 navigation buttons |
| Alarms | High-low deviation, sensor break, event or element failure |
| Communications | Optional RS233 or RS485 |
| Dimensions H x W (mm) | 48 x 48 (1/16 DIN) |
| Configuration | Panel mounted |
Content may be subject to modifications or corrections
