IsoMet 1000 Precision Cutter

The IsoMet 1000 is a precision sectioning saw designed to cut various materials with minimal deformation. It is targeted for delicate parts by only using gravity-fed force.

  • Flexible settings for varied sample preparation
  • Excellent cut quality for delicate samples
Request a Quote

The IsoMet 1000 Precision Cutter is a precision sectioning saw is designed for cutting various types of materials with minimal deformation. This precision cutting machine is ideal for delicate parts by only using gravity fed force. Its great versatility in chucking allows for holding all types of sample shapes and configurations giving today’s laboratory a precision cutting machine capable of sectioning virtually any material including brittle or ductile metals, composites, cements, laminates, plastics, electronic devices, and biomaterials.

Flexible settings for varied sample preparation

  • RPM ranges from 100-975 to provide cut quality for varied materials
  • Table saw attachment for precisions sample alignment (accessory)
  • Great versatility in holding all types of sample shapes and configurations, gives today’s laboratory a precision
  • Sectioning tool capable of cutting virtually any material including brittle or ductile metals, composites, cements, laminates, plastics, electronic devices and biomaterials. When equipped with the optional rotating chuck, sectioning times are dramatically reduced.

Excellent cut quality for delicate samples

  • Gravity fed cutting force to reduce deformation on delicate samples

Specifications

Specifications
Frequency Universal
Voltage Universal
Phase 1
Cutting Capacity 2.00[in], 50.00[mm]
Wheel Diameter 7.00[in]
Controls LED
Cut Action Gravity Fed Chop
Programmability No
Serial Capabilities No
Wheel Diameter 178[mm]
RPM @60 Hz 100 to 975
Precision Chucks Goniometer Coolants
Table Saw Splash Guard 800 Gram Weight Set Table Saw Attachment

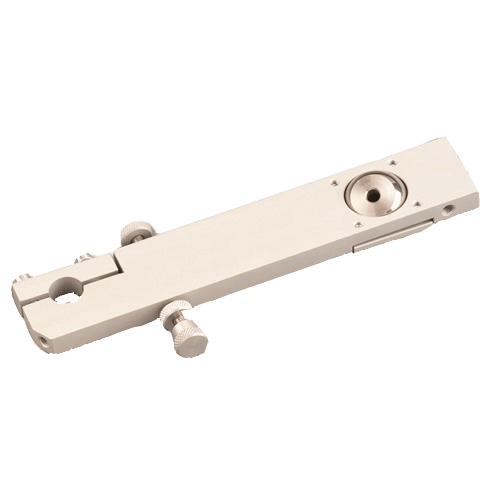

Swivel Arm Assembly Swivel Arm Assembly
