The nanodacTM in recorder only mode comprises a compact, sophisticated and economical paperless chart recorder / DAQ (digital acquisition) recorder. In this mode it must be used in combination with a conventional temperature controller. Up to 14 virtual channels for example performing averaging on the data.
Data is continuously logged into either a CSV (comma separated value) or UHH (Eurotherm Hydra History – a Eurotherm proprietary secure data format) and can be archived onto an 8MB flash drive or using EtherNET to an IP address on a networked server.
Standard features
- Clear full colour VGA display screen
- Navigation via 4 push button controls
- Clear text and numeric display in English, French, German, Italian or Spanish
- Data can be displayed as bar graphs or line traces
- 50MB internal memory and up to 8GB to USB memory stick
- Data archiving to FTP server
- Multiple language display
- User configurable screens
- 4 recording channels and up to 14 ‘virtual channels’ for maths functions, min-max recording, channel averages, counters etc.
- Real time clock
Options (specify these at time of order)
- Option for a combined paperless chart recorder and set-point controller
- Option for a combined paperless chart recorder and programmable recorder
- Compatible USB memory stick
- Cascade control using the sample temperature
- Mobile data display via web browser through addition of a wireless router or connection to web server

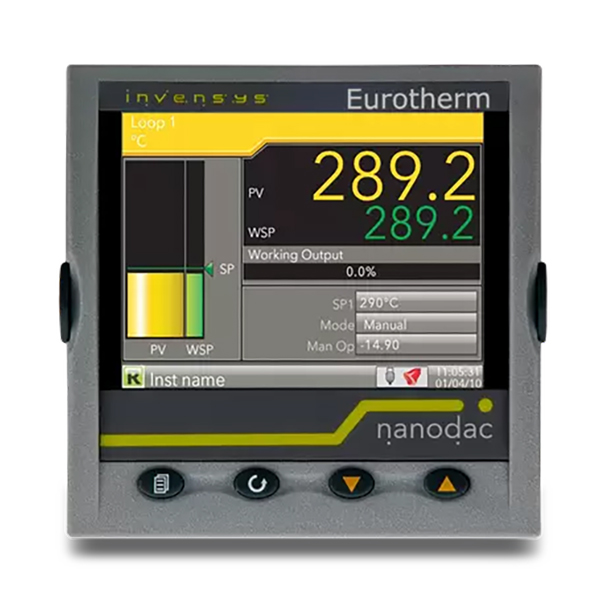

NANODAC
Technical Specifications
nanodac Record Only
| Control technology | This version of the nanodac has no temperature control functionality and must be used in combination with a temperature controller |
| Display | 320px x 240px (3,5″) VGA colour screen |
| Control | 4 navigation buttons |
| Basic functions | A paperless chart recorder or DAC (digital data acquistion) device |
| Channels | 4 channels (plus 14 virtual channels for maths, totalisers, counters etc) |
| Capacity | 50MB internal flash memory or 8GB USB memory stick |
| Additional functions | Recording format UHH (Eurotherm’s proprietary secure format) or CSV |
| Communications | USB and FTP over Ethernet |
| Alarms | 2 per channel from: absolute high-low, deviation high-low, deviation band, rate of change |
| Dimensions H x W (mm) | 96 x 96 (1/4 DIN) |
| Configuration | Panel mounted |
nanodac Record / Control
| Control technology | PID (proportional integral derivative) set-point control |
| Display | 320px x 240px (3,5″) VGA colour screen |
| Control | 4 navigation buttons |
| Basic functions | A paperless chart recorder or DAC (digital data acquistion) device |
| Channels | 4 channels (plus 14 virtual channels for maths, totalisers, counters etc) |
| Capacity | 50MB internal flash memory or 8GB USB memory stick |
| Additional functions | Recording format UHH (Eurotherm’s proprietary secure format) or CSV |
| Communications | USB and FTP over Ethernet |
| Alarms | 2 per channel from: absolute high-low, deviation high-low, deviation band, rate of change |
| Dimensions H x W (mm) | 96 x 96 (1/4 DIN) |
| Configuration | Panel mounted |
nanodac Record / Programmer
| Control technology | Up to 100 programs stored locally with each program having up to 25 segments, remote access to up to 200 programs via FTP or USB memory stick |
| Display | 320px x 240px (3,5″) VGA colour screen |
| Control | 4 navigation buttons |
| Basic functions | A paperless chart recorder or DAC (digital data acquistion) device |
| Channels | 4 channels (plus 14 virtual channels for maths, totalisers, counters etc) |
| Capacity | 50MB internal flash memory or 8GB USB memory stick |
| Additional functions | Recording format UHH (Eurotherm’s proprietary secure format) or CSV |
| Communications | USB and FTP over Ethernet |
| Alarms | 2 per channel from: absolute high-low, deviation high-low, deviation band, rate of change |
| Dimensions H x W (mm) | 96 x 96 (1/4 DIN) |
| Configuration | Panel mounted |
Content may be subject to modifications or corrections
