With the TP 1900 (19”), 20 unique heat treatment programs can be stored with a maximum of 25 different segments.
The furnace is operated by automated programming via a touch panel interface with logging of all process and operational data. Generation of a csv file is possible for further analysis and evaluation. Remote maintenance is an available option.

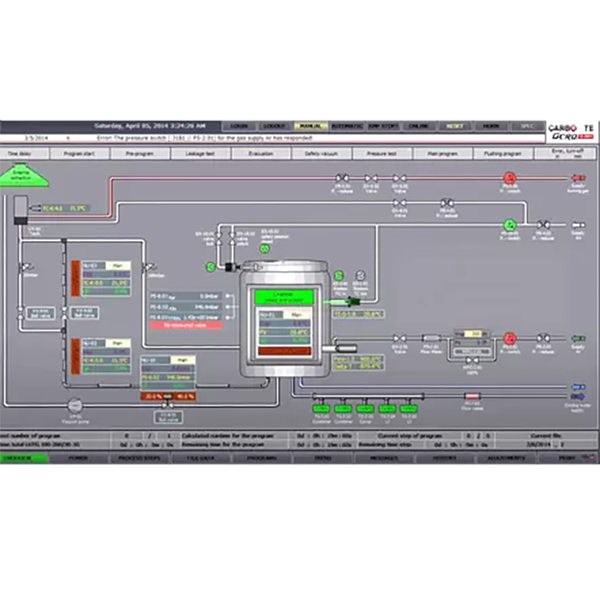

- Full visualization of the furnace with 19’’ touch panel, mainly for fully configured units or for the use of hydrogen (>5%)
- Configuration of an automatic program
- The automatic software is used for more complicated and hydrogen processes
- The CC-IPC1900 version additionally includes an industrial PC with standard windows software
- The system is based on an industrial standard Siemens F-PLC ensuring full safety even for hydrogen applications
- The pre-program ensures a fully automated leakage test which takes place in overpressure and vacuum
TP 1900
Technical Specifications
| Size of Panel | 19″ |
| Number of programs | 20 |
| Export data | .csv |
| Remote access | With Siemens software |
| Keyboard | Optional |
| Remote maintenance | Optional |
| Online changes | Yes |
| MFC | Yes |
| Rotameter | No |
| Heated gas outlet | Yes |
| Turbopump | Yes |
| Hydrogen | Yes |
| Partial pressure | Yes |
| Sliding TC | Yes |
